Updated drawings

Added on by Spencer Wright.

Changes:

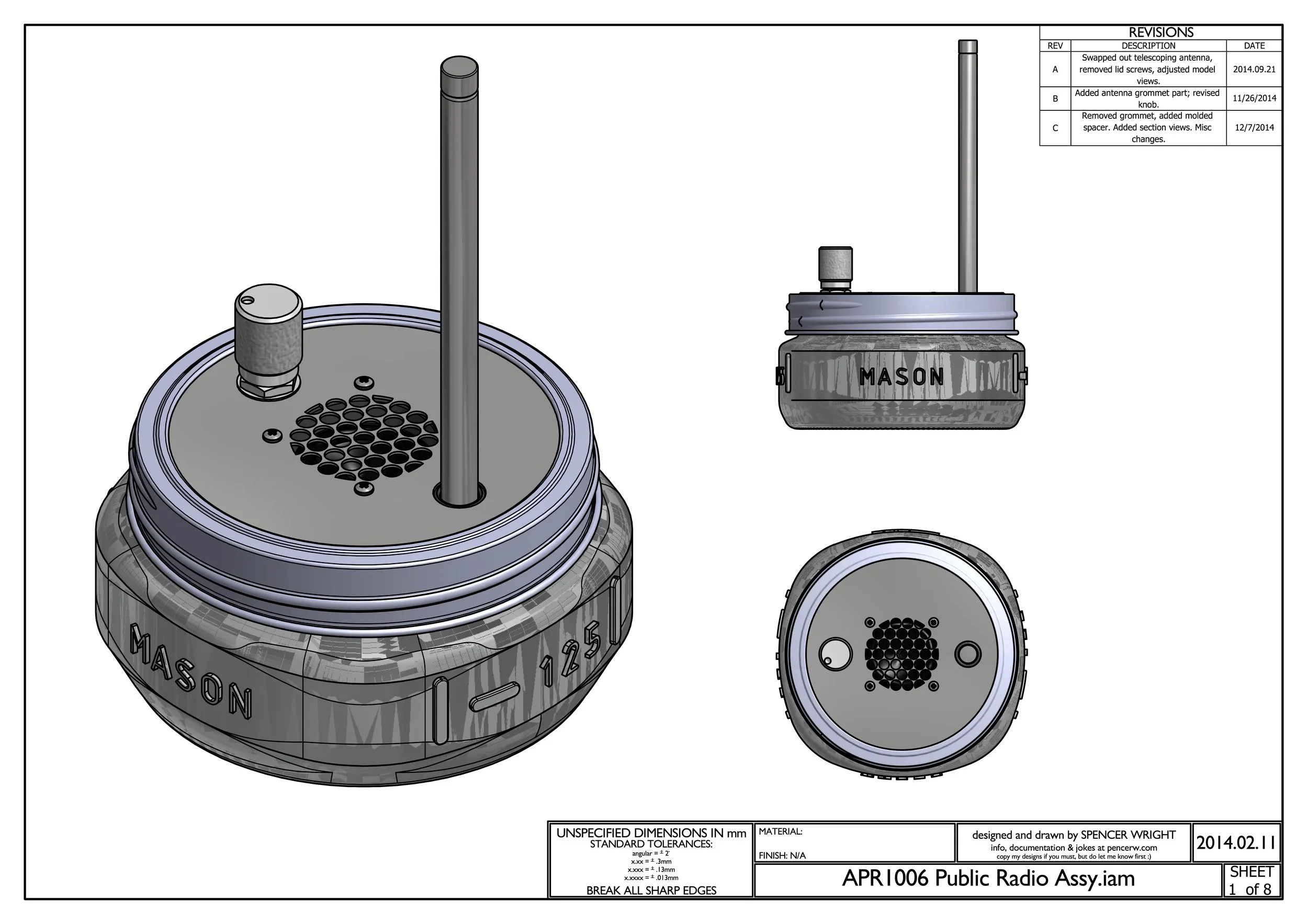

  • Oriented all drawings the same way
  • Much improved BOM with screw & nut specs & names, more details on custom parts
  • New spacer setup

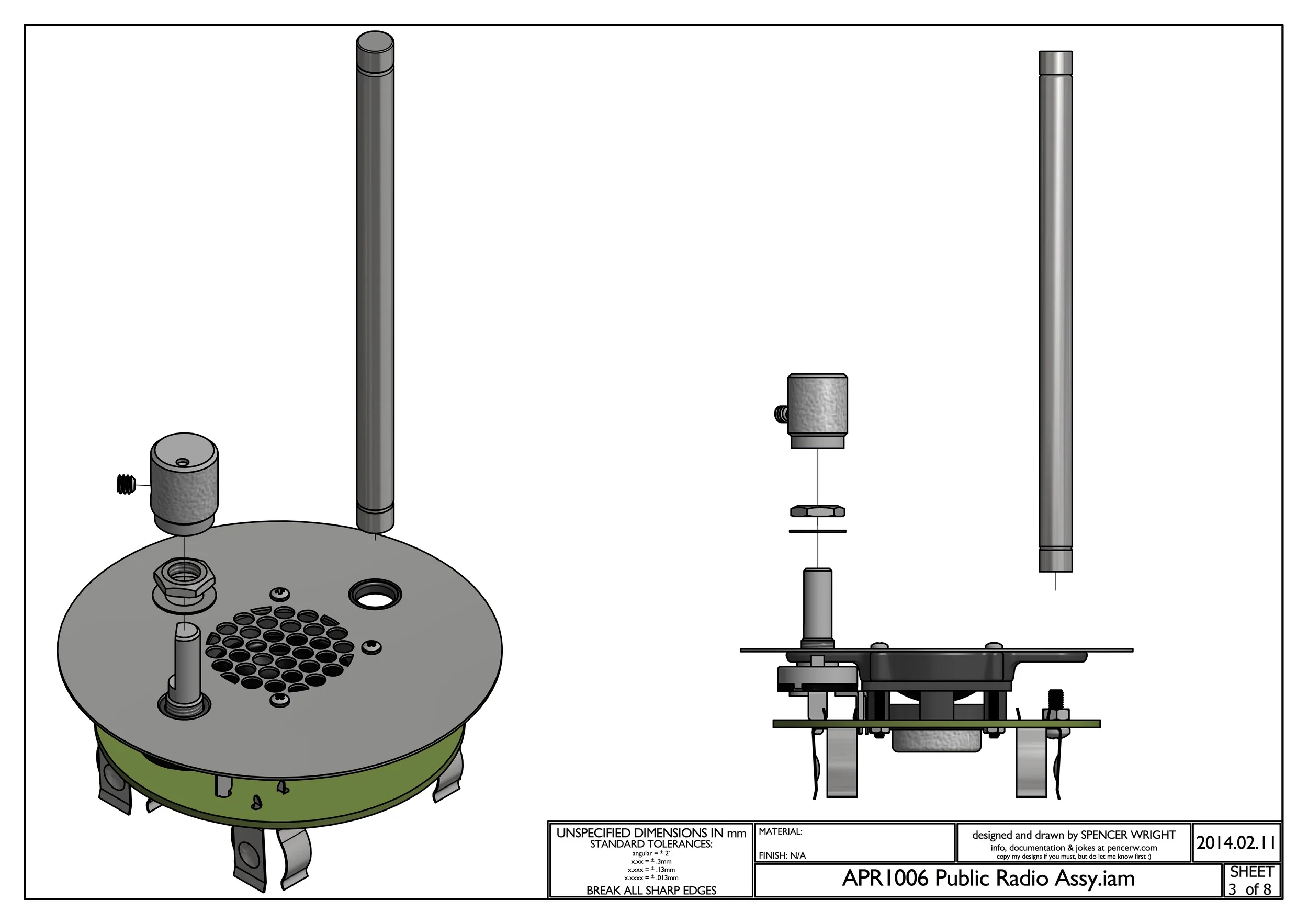

  • Section & detail drawings show interface between spacer, lid, and antenna/potentiometer

Full PDF here, in case you're really curious.
